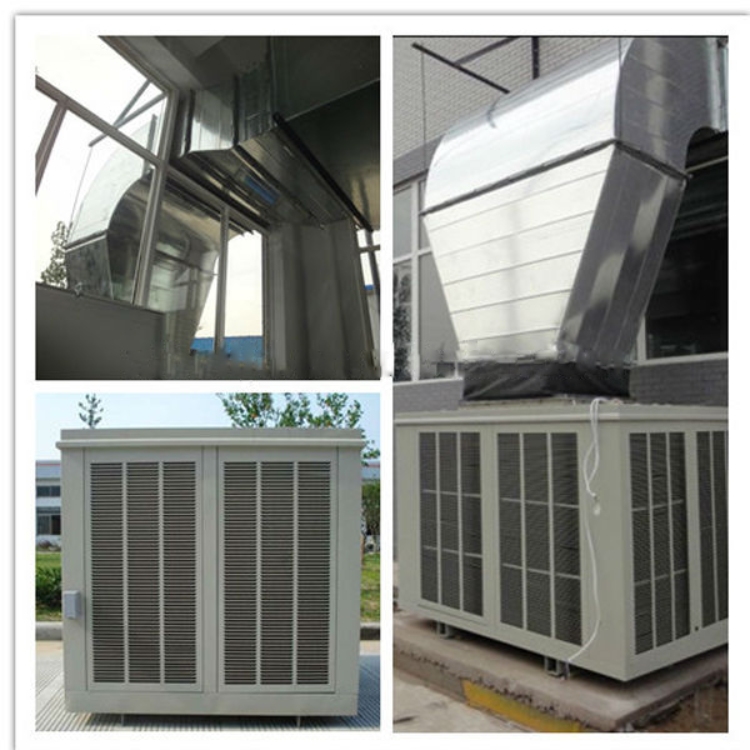

Huge Airflow Commercial Project Industrial Evaporative Air Cooler

Huge Airflow Commercial Project Industrial Evaporative Air Cooler

high quality motor with aluminum shell with good heat dissipation which extend operation life of motor double sealing bearing to prevent dust into bearing and prevent grease to run out
  • item no.:

    XL31-35S
  • product details

Siboly Superpower Volume Air Cooler Series

-different from traditional AC,which can work effeciency at open area

-high quality motor with aluminum shell with good heat dissipation which extend operation life of motor

-double sealing bearing to prevent dust into bearing and prevent grease to run out

- eco-friendly wet pad(5090) more advance than current industrial 6090/7090,increase  evaporative effeciency.

-standard industrial keyboard controler which easy to operation and low maintaince cost


The details data as follows:


Airflow (m3/h)

35000

Exterior Size (mm)

1850×1550×1500

Net Weight(kg)

550

Power Supply(V/Hz)

380/50

Power Consumption

5.5kw

Water Capacity(L)

100

Effective Area(m2)

350-400

Controller:

Industrial Controller

Auto Fan Type:

Axial

Noised(dB):

≤80

Evaporation Effiency:

83%


Siboly Evaporative Air Cooler Principle

Siboly evaporative air cooler is a device that cools air through the evaporation of water. Evaporative cooling differs from typical air conditioning systems which use vapor-compression or absorption refrigeration cycles. Evaporative cooling works by employing water's large enthalpy of vaporization. The temperature of dry air can be dropped significantly through the phase transition of liquid water to water vapor (evaporation), which can cool air using much less energy than refrigeration. In extremely dry climates, evaporative cooling of air has the added benefit of conditioning the air with more moisture for the comfort of building occupants.



If you are interested in our products ,Please feel free to contact us for further information. Any time ,we will bring the best service to you.
